Nearest Neighbor 法で MNIST データセットの分類
はじめに
わかりやすいパターン認識の第 1 章で k-NN 法が説明されていたので、MNIST データセットを分類してみる。
コード
コードは以下の通り。特徴ベクトルとしてはピクセルごとの濃淡値をそのまま使い、距離尺度としてはユークリッド距離を用いた。
import os from matplotlib import pyplot as plt import numpy as np from sklearn import datasets, model_selection K = int(os.environ.get('NN_K', 5)) CLUSTER_SIZE = int(os.environ.get('NN_CLUSTER_SIZE', 10)) def distance(x, y): return np.sqrt(np.sum((x - y)**2)) def predict(x, prototypes): # calculate distances from x for each prototype distances = [] for cls, data in prototypes.items(): distances.extend([(int(cls), distance(x, y)) for y in data]) distances.sort(key=lambda d: d[1]) # count classes of top K class_count = [0] * 10 for cls, _ in distances[:K]: class_count[cls] += 1 # return the class having maximum class count return max(enumerate(class_count), key=lambda i: i[1])[0] if __name__ == '__main__': mnist = datasets.fetch_mldata('MNIST original', data_home='.') x_train, x_test, y_train, y_test = model_selection.train_test_split( mnist.data, mnist.target, test_size=0.5, shuffle=True ) # choose prototypes for each class prototypes = {} for i in range(10): data = x_train[y_train == i] prototypes[str(i)] = data[:CLUSTER_SIZE] # predict predicts = np.array([predict(x, prototypes) for x in x_test]) accuracy = len(x_test[predicts == y_test]) / len(x_test) print(f"accuracy = {accuracy}")
結果

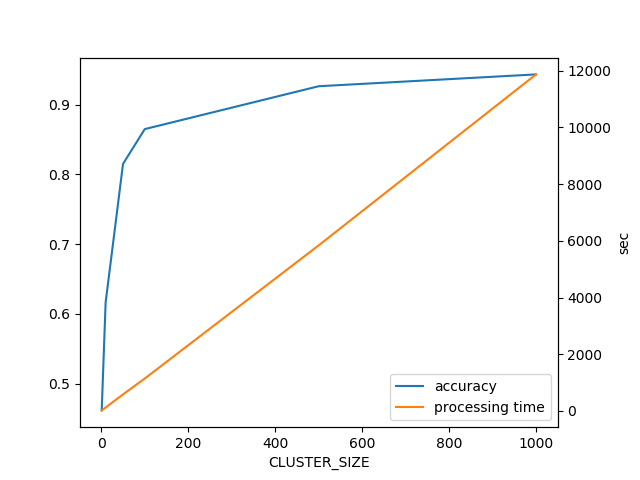

CLUSTER_SIZE を変化させて分類精度と処理時間をグラフにしてみた。
K は CLUSTER_SIZE = 1 のときは 1、それ以外の時は 10 に設定した。
CLUSTER_SIZE が 1000 のときは分類精度が 0.95 と、単純方法の割に予想以上に高い結果となった。
また処理時間は CLUSTER_SIZE に線形になった。最近傍を求めるためにクラスター内の全パターンとの距離を計算しているためであろう。
まとめ
- k-NN で MNIST を分類してみた
- 単純な方法でも以外と精度出た
- データ量大事
